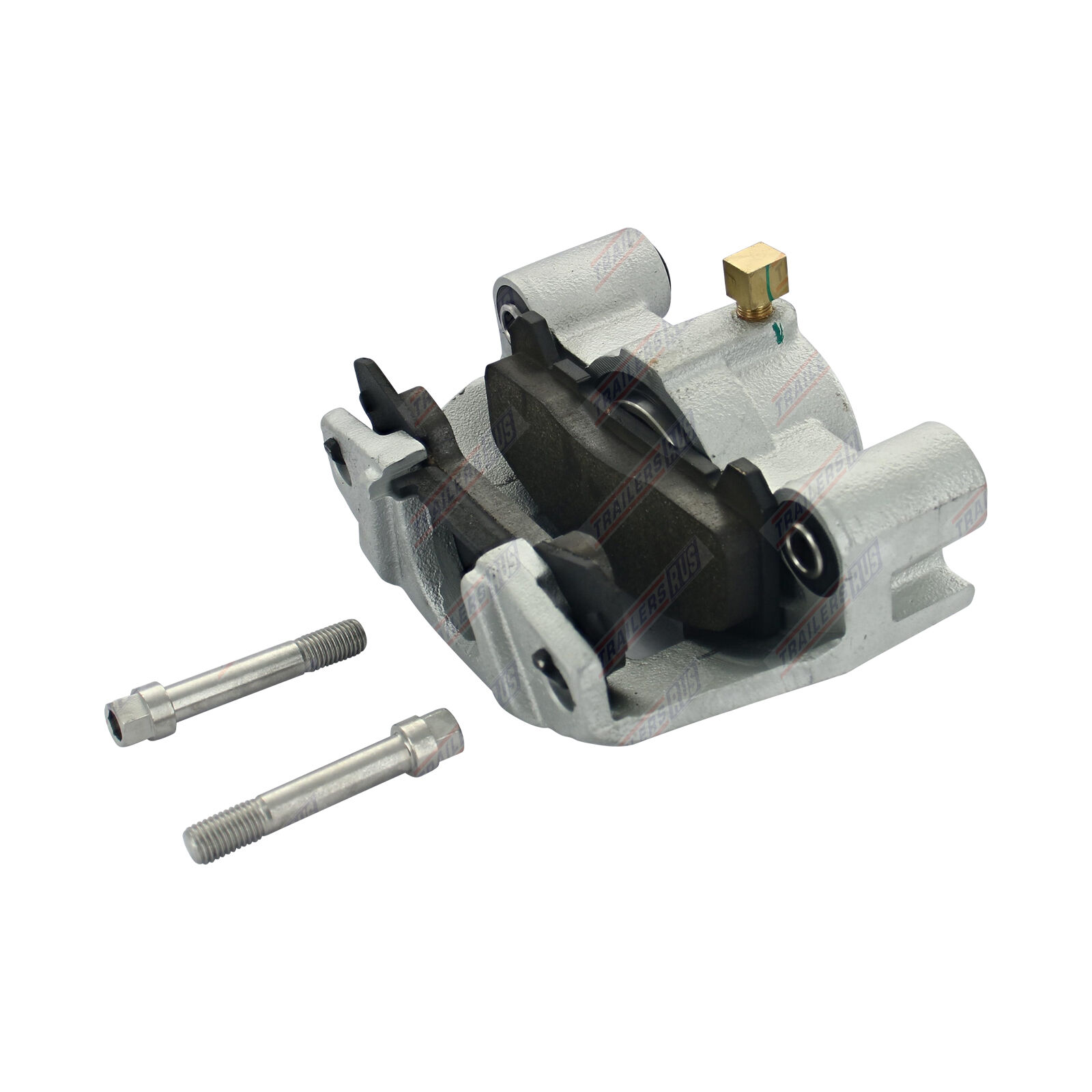

This T225 Hydraulic Brake Caliper is designed to be used 19mm - 24mm thick Disc Rotors and is sometimes found on Imported American-designed Trailers. Hydraulic brake systems are most common on boat Trailers that are rated above 2000Kg due to their ability to keep working when exposed to water. When your trailer is rated above 2000Kg in a dual Axle setup you will need to have hydraulic brakes installed on both Axles. Hydraulic Calipers are often preferred when using a dual axle system due to the simplicity connecting multiple calipers with hydraulic brake lines.
Trailers with loaded weights exceeding 2000kg require independent control and breakaway facility, causing the brakes to automatically be activated should the towing vehicle and the trailer become disconnected in transit.

NO THREAD in caliper

Specifications
Includes Brake Pads and Hydraulic Union
Cast Iron Dacromet Material
Replaces Kodiak 225 Caliper
Suits 19mm - 24mm Thick Discs
Stainless Steel Slide Pins
Stainless Steel Piston

SKU CHT225D
Brand TRU
Shipping Weight 3.9000kg
Unit Of Measure ea
