SKU: XLE12T

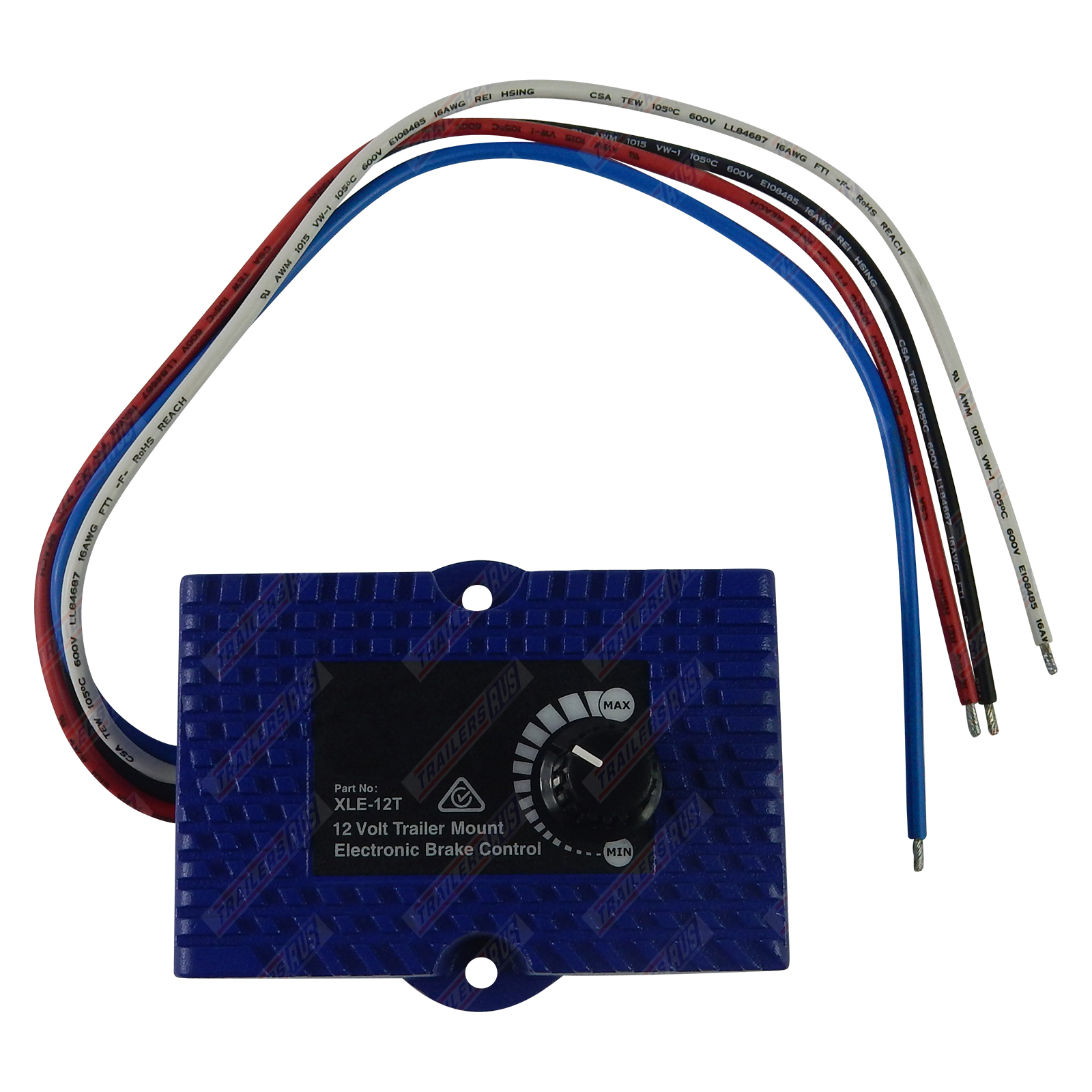

Electric Brake Controller for Trailer Drawbar Mounted 12V 1 Braked Axle Under 2 Tonne

$125.00

or 4 interest-free payments of $31.25 fortnightly with Afterpay and receive your order now.

Click to See How

In Stock


Calculate Shipping



Click and Collect - Pick up From Store - Northgate Only

Description

This electric Brake Controller is ideal for mounting on the drabar of your Trailer. Suitable for trailers with one braked axle under 2000kgs ATM. Designed to fit into the smalest space yet still has all the features found in much larger units.

This unit is designed with these trailers in mind that do have brakes. ( lighting trailers, small campers & small hire trailers)

FEATURES:

They are fully sealed to protect against moisture ingress and are fully adjustable for braking pressure/loads..

Operates Reliably even on Roughest Roads

Adjustable Brake Pressure via Control Knob

Suitable for Single Axle Trailers

Easy Connection, Only Four Wires

Light Weight Aluminium Heatsink Construction

Can be Mounted in any Position

LED Status Indicator

XLE-12T is only Suitable for 1 Axle

SPECIFICATIONS:

Minimum Operating Voltage - 12V DC
Nominal Operating Voltage - 13.2V DC
Maximum Operating Voltage - 14.5V DC
No Load Currents (Brakes "Off") - 8mA
Maximum Load Current - 4.3 Amps
Weight - 174g
Dimensions 95mm (L) x 58mm (W) x 30mm (H)

Wire Colours from controller
RED --> Positive From Brake Switch
BLACK --> Positive From Battery (via 15 Amp Fuse)
WHITE --> Negative or Ground
BLUE --> To Trailer Brakes

*Not Compatable with Hydrastar Brake actuator

*Please check with your local transport authority to confirm that trailer mounted electric trailer brake controllers are permitted in your state

Specifications

SKU XLE12T
Brand TRU
Shipping Weight 0.4000kg
Unit Of Measure ea
