Never underestimate the importance of your trailer wheel bearings. Its easy to overlook as you cannot see any damage or wear unless you carry out a full inspection. A well-greased, correctly fitted wheel bearing assembly allows your wheels to spin freely and maintains a safe driving experience. Once wheel bearings become aged, worn, dry or have excessive freeplay they can become very hazardous for not only you, the driver, but all others sharing the road.

This quick and easy guide will help you better understand and identify your wheel bearing setup. With this information you can maintain and prevent further headaches down the track.

Identifying your correct bearing setup is important when replacing hubs and bearings on your trailer.

The easiest way to determine which bearings are used on your trailer axle is to take the hub off and look for the reference numbers stamped into the metal of both inner and outer bearings. If the bearing numbers are unclear, the next best solution is to take measurements of both bearings.



The diagram below will help outline the “part numbers” required to identify which bearings you need:

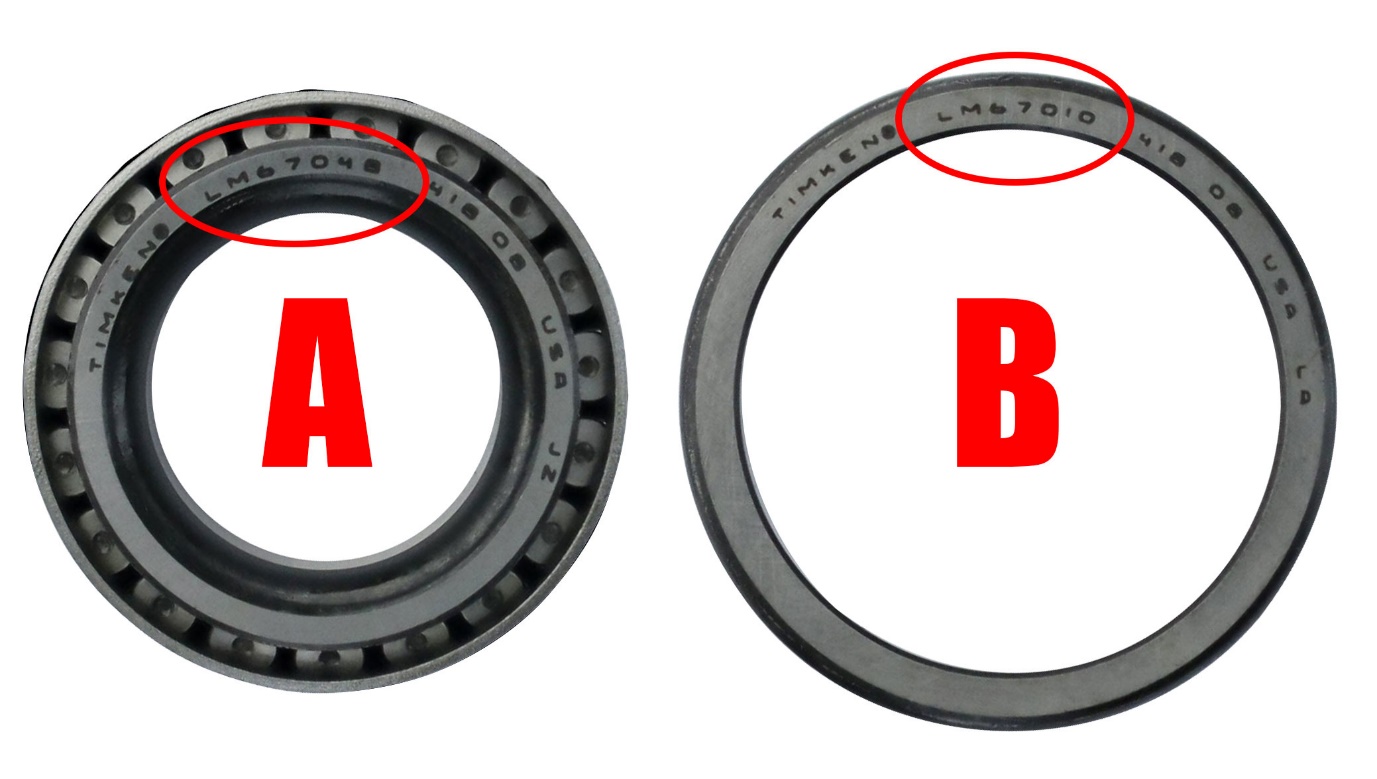

Picture (A)

This is the bearing itself.

EG: LM67048

In this instance, LM represents that this is a Holden Bearing and the 5 digit number that follows is the part number.



Picture (B)

This is the Cup which the bearing is seated in when assembled. If this has been pressed from the hub and upturned, you can identify the number stamped on it.

EG: LM67010 – The number to focus on here is the last two digits.

This means that the complete part number in this instance is - LM67048/10.

It is a combination of the complete part number on the bearing and the last two digits on the cup.



If the numbers cannot be identified then you can use your measurements to find the right bearing you need.

Bearings consist of 2 parts

  • The Cup which is pressed into the Hub
  • The Cone which is the part that contains the rollers of the bearing.

Bearings should always be replaced in a set, the cone and cup together.

The two main measurements required are I.D (Inner Diameter) and O.D (Outer Diameter) of each bearing. It is also very important to know the measurements of your seal as well. This simple component can determine the longevity of your bearings. A faulty, mismeasured or poorly fitted seal will result in premature wear of your bearings.



In a bearing assembly in a hub, the bearing on the inside of the hub flange (the side closest to the centre of the trailer) is called the inner bearing. The bearing on the outside is called the outer bearing.

On common SL type bearings, the inner bearing is always the larger of the two.

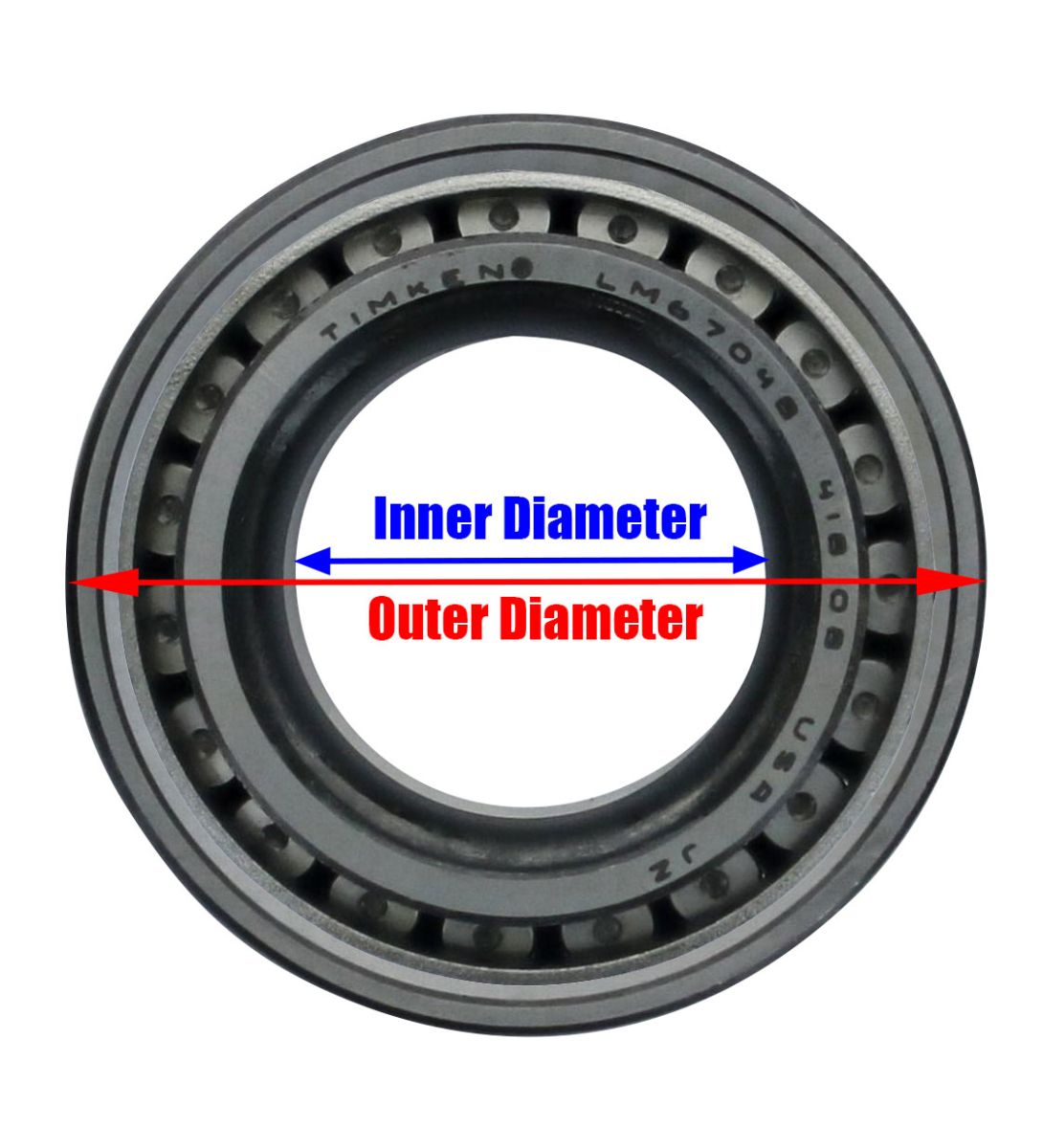

The image below demonstrates how to measure your bearings, where to measure and what part of the axle the bearings they are installed.

These are some of the common Trailer Bearing Combinations listed below:

Axle Type Inner Bearing /
Inner Cup
Part No
Inner Bearing Dimensions
ID x OD x Width in MM
  Outer Bearing / Outer Cup
Part No
Outer Bearing Dimensions
ID x OD x Width in MM
LM (Holden) LM67048/10 31.750 x 59.131 x 15.875   LM11949/10 19.050 x 45.237 x 15.494
Slimline (Ford) L68149/10 34.988 x 59.131 x 15.875   LM12749/10 21.986 x 45.237 x 15.494
Composite LM67048/10 31.750 x 59.131 x 15.875   LM12749/10 21.986 x 45.237 x 15.494
Parallel/ESS L68149/10 34.988 x 59.131 x 15.875   L68149/10 34.988 x 59.131 x 15.875
Melbourne Trailers 2T 25580/20 44.450 x 82.931 x 23.812   LM67048/10 31.750 x 59.131 x 15.875
Melbourne Trailers 3T 30210/10 50 x 90 x 21.75   LM29749/10 38.1 x 65.088 x 18.034
TB500 30308 40 x 90 x 25.25   15123/245 31.750 x 62 x 18.161
Dexter 1.8T / D35 USA L68149/11 34.987 x 59.975 x 15.875   L44649/10 26.99 x 50.292 x 14.224
Dexter / D44 USA L68149/11 34.987 x 59.975 x 15.875   LM67048/10 31.750 x 59.131 x 15.875
Dexter 2T / D60 USA 25580/20 44.450 x 82.931 x 23.812   15123/245 31.750 x 62 x 18.161
Dexter Hub 8-91A USA L44643 25.4 x 50.292 x 14.224   L44643 25.4 x 50.292 x 14.224
Dexter USA L44649/10 26.99 x 50.292 x 14.224   L44649/10 26.99 x 50.292 x 14.224
ALKO 1.5T LM29749/10 38.1 x 65.088 x 18.034   LM67048/10 31.750 x 59.131 x 15.875
ALKO 2T / TX 30210/10 50 x 90 x 21.75   15123/245 31.750 x 62 x 18.161
ALKO 3T 30210/10 50 x 90 x 21.75   LM29749/10 38.1 x 65.088 x 18.034



It is good practice to check and carry out basic maintenance of your bearings periodically. Generally, every 6 to 12 months, even if you aren’t using your trailer often. Always check for signs of wear, overheating, lack of grease and freeplay.

Sometimes a visual inspection, regrease and adjust will suffice.

However, If in doubt, Replace!!

Well maintained bearings will last longer and ensure the safety of you and all others on the road.

NOTE: It is extremely important to fit bearing assemblies correctly. Incorrect fitment, or fitment of incorrect components can be very dangerous and must be carried out the right way. If you are unsure, consult a professional.
