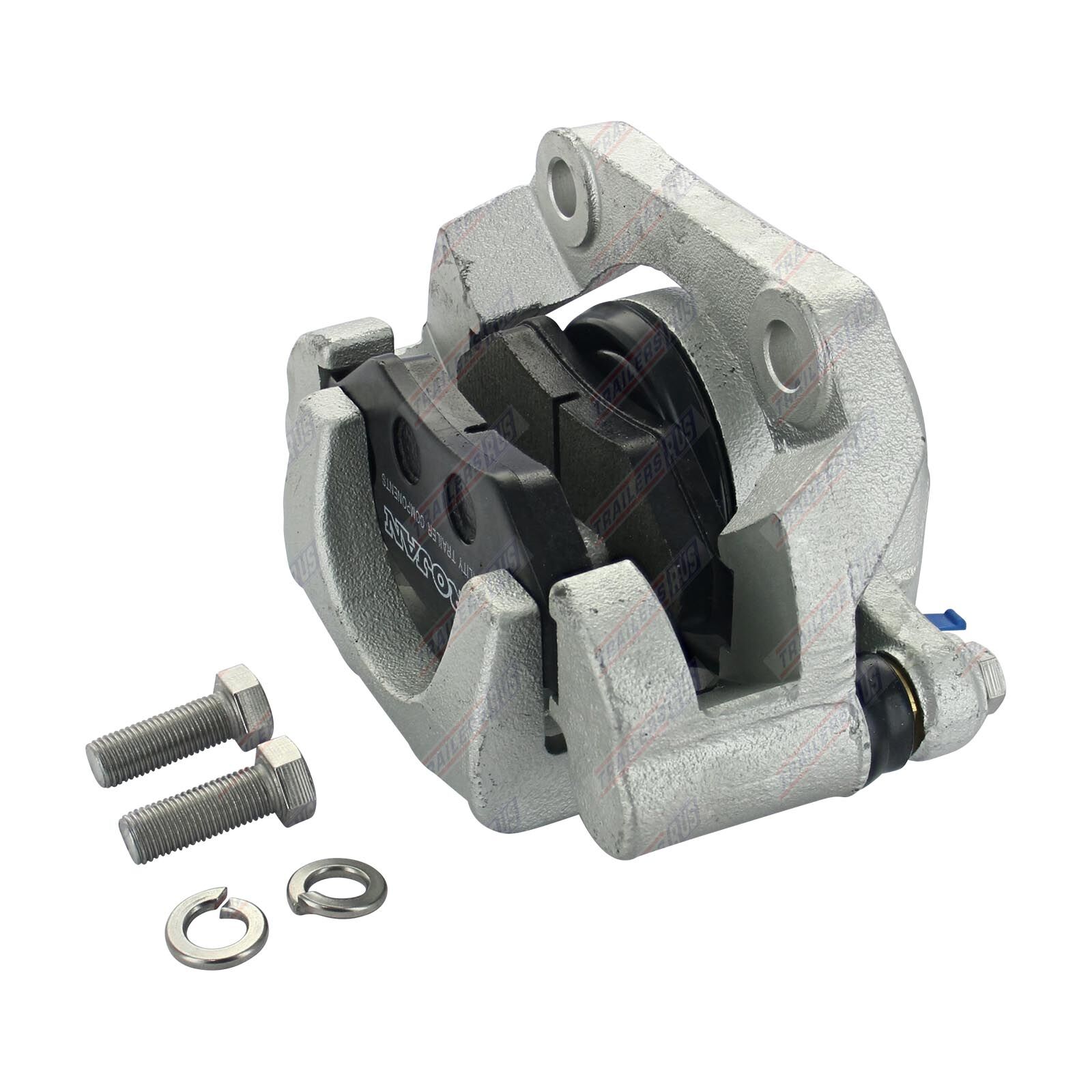

These Trojan 993481 Hydraulic brake calipers are made of high quality Dacromet Cast Iron Steel for corrosion resistance making them ideal for marine trailers. Hydraulic brake systems are most common on boat Trailers that are rated above 2000Kg due to their ability to keep working when exposed to water. When your trailer is rated above 2000Kg in a dual Axle setup you will need to have hydraulic brakes installed on both Axles. Hydraulic Calipers are often preferred when using a dual axle system due to the simplicity connecting multiple calipers with hydraulic brake lines.
Trailers with loaded weights exceeding 2000kg require independent control and breakaway facility, causing the brakes to automatically be activated should the towing vehicle and the trailer become disconnected in transit.

PLEASE NOTE This Caliper has NO THREAD in the mounting holes

Specifications
Brake Pads Included
Dacromet
Phenolic Piston
Suits 10'' Inch and 12'' Inch Discs
Suits 15mm Disc Thickness
Mounting Bolt Distance 89mm-90mm Centre to Centre
1500Kg Rated Per Axle - 225mm Rotors
2000Kg Rated Per Axle - 275mm Rotors

SKU 993481
Brand Trojan
Shipping Weight 3.5400kg
Unit Of Measure ea
