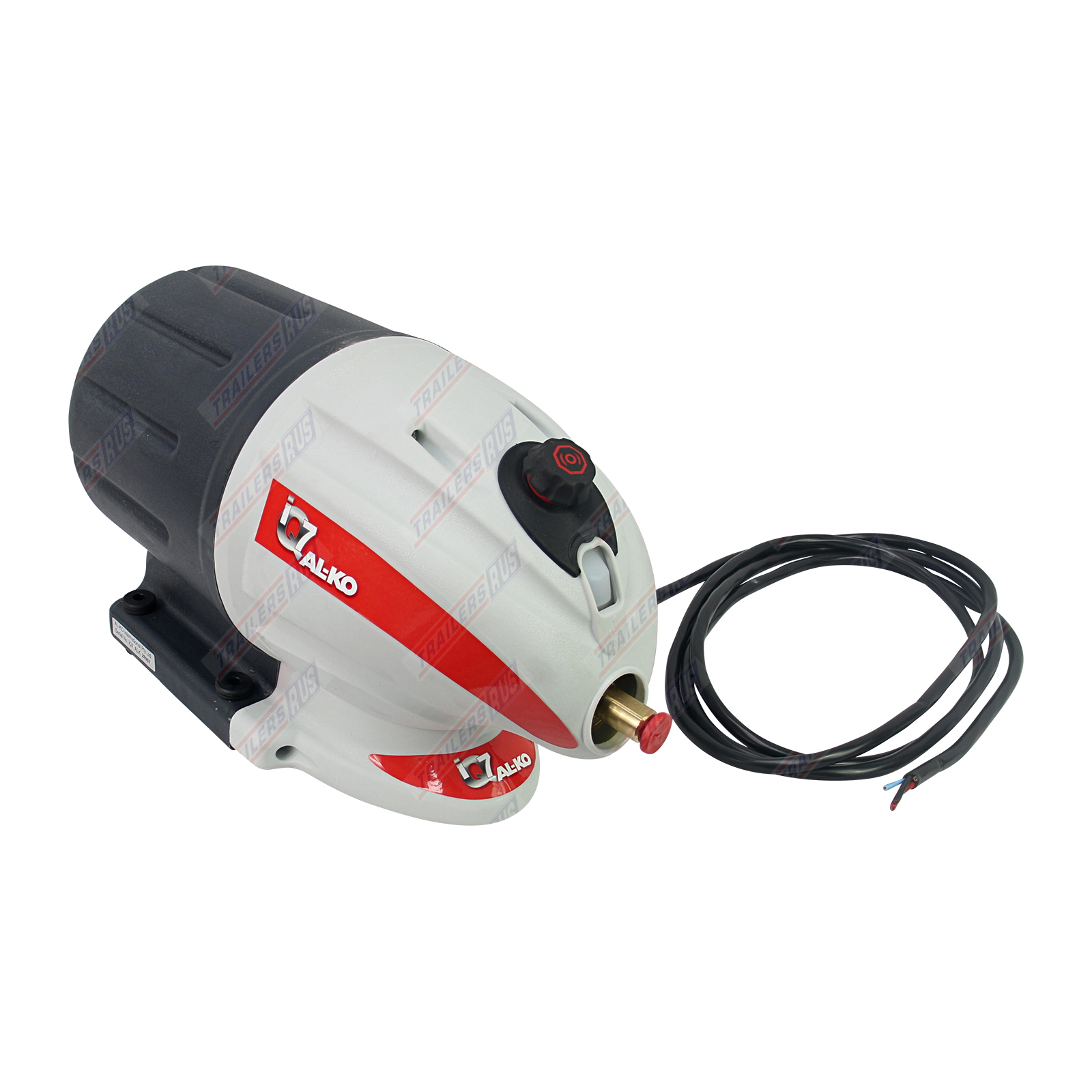

This iQ7 Brake Actuator is designed to significantly improve stopping performance and safety for trailers with hydraulic brakes, especially large boat trailers. It allows immediate brake application the instant it is required. includes inbuilt breakaway technology to stop your trailer if it becomes detached from the tow vehicle. No other parts are required.

Specifications
When Electrically Disconnected from the Tow Vehicle, the IQ7 Compressor Activates the Hydraulic Park Brake
Mounted Actuator Internally or Externally
Australian Made with the National Service Network
Suits Caravans and Boat trailers Fitted with Hydraulic Disc Brakes
Breakaway Kit and Switch Included
Maximum hydraulic pressure for IQ7 is 1000psi ( 6.9 Mpa ) and fluid displacement of 21cc
For Trailers up to 3.5 Tonne with Electric over Hydraulic Brake Applications
Meets ADR Breakaway Requirements for Trailers over 2000kg

Hydraulic Braking Systems that suit:
Independent Coil Suspension Kit – Hydraulic
45mm Square Galvanised Hydraulic 1450kg Disc Brake Axle
50mm Square Hydraulic Disc Brake Axle
60mm Round 2t – 3t Hydraulic Disc Braked Axle

Approved Motion Sensing Brake Controllers Compatible with the iQ7:
Hayes Energiser lll
Tekonsha Primus IQ
Tekonsha Prodigy P2
Tekonsha P3
REDARC Tow-Pro Elite
Elecbrakes ELBC2000PS

SKU 355002E
Brand ALKO
Shipping Weight 6.6000kg
Unit Of Measure ea
