Kit Includes

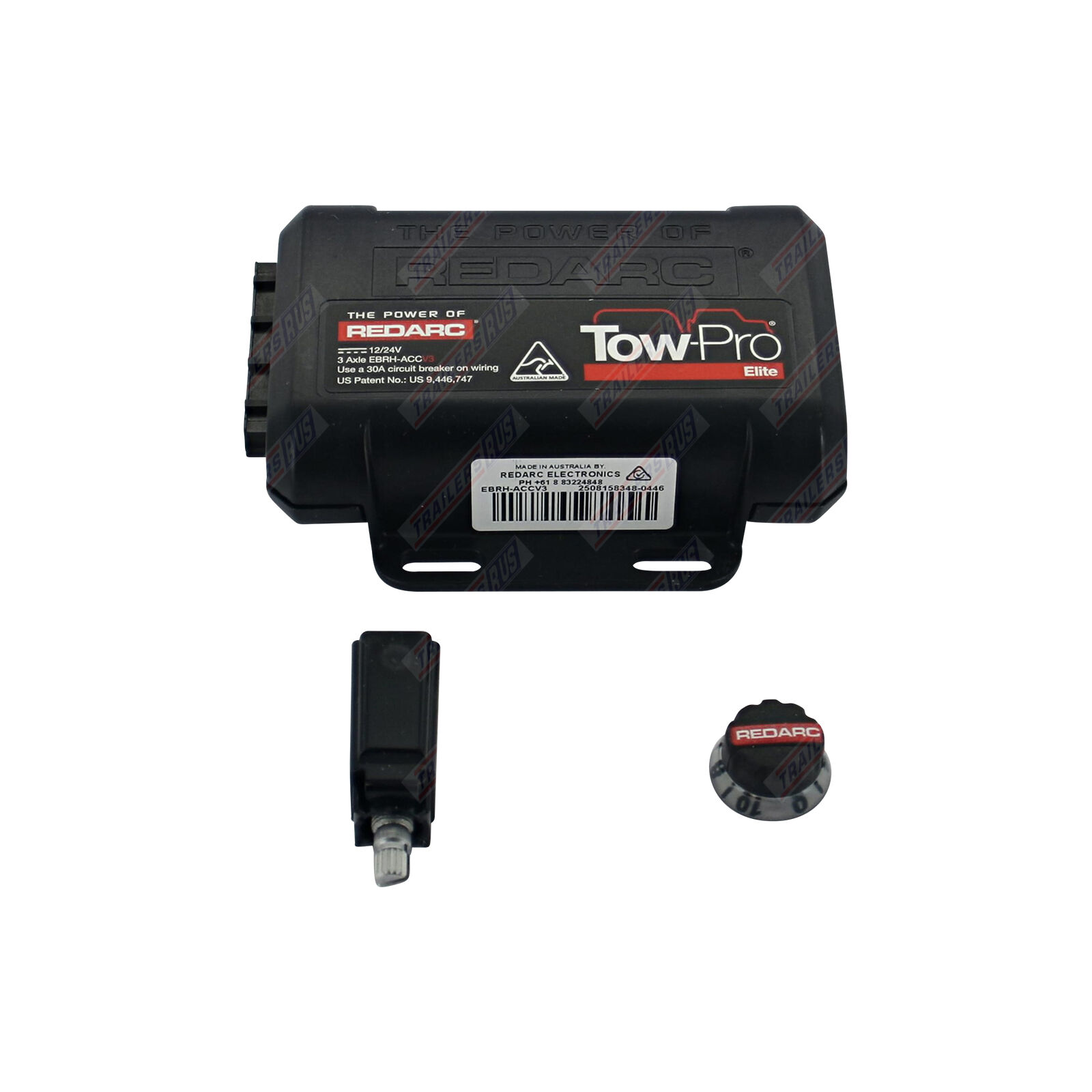

1 x Main Unit
1 x Remote Head Assembly - Body, Knob, Bezel, Nut
1 x Wiring unit and Connector
1 x Remote Head Cable

Specifications
Australian Made
Manual Override Function
Automatic or Proportional Brake Control Functions
Hidden Installation behind dash
ADR Approved
Suits Trailers with 1 Axle, 2 Axles or 3 Axles
Nominal Input System Voltage 12 V - 24 V
Operating Voltage 9 V - 32 V
Brake Coil Voltage 12 V
Max Rated Current 12 V - 25Amp
Max Rated Current 24 V - 30Amp
Standby Current < 5mA
Operating Temp –20°C to +60°C

Redarc have designed their Tow-Pro Elite brake controller range to be smooth and reliable on all terrain and in all conditions making them one of Australia's most trusted brake controllers on the market. This controller has both Automatic and Proportional control modes which can be changed to suit highway or off road driving conditions. These brake controllers are also made to be compatible with older vehicles and modern vehicles using TPSI Switch inserts and TPW wiring kits

In Australia an electric brake controller is legally required on any trailer, caravan, camper, or horse float that has a rating of 2 tonne or more with an electric brake system. They are generally installed in the tow vehicle allowing the driver to have maximum control over their trailers brakes. Once installed a brake controller will ensure the correct amount of force is applied to your trailers brakes when you brake in your tow vehicle. They are an essential safety addition to ensure maximum stability and control when towing, and offer peace of mind if you ever have to stop quickly in an emergency.

SKU EBRH-ACCV3
Brand Redarc
Shipping Weight 0.3400kg
Unit Of Measure ea
