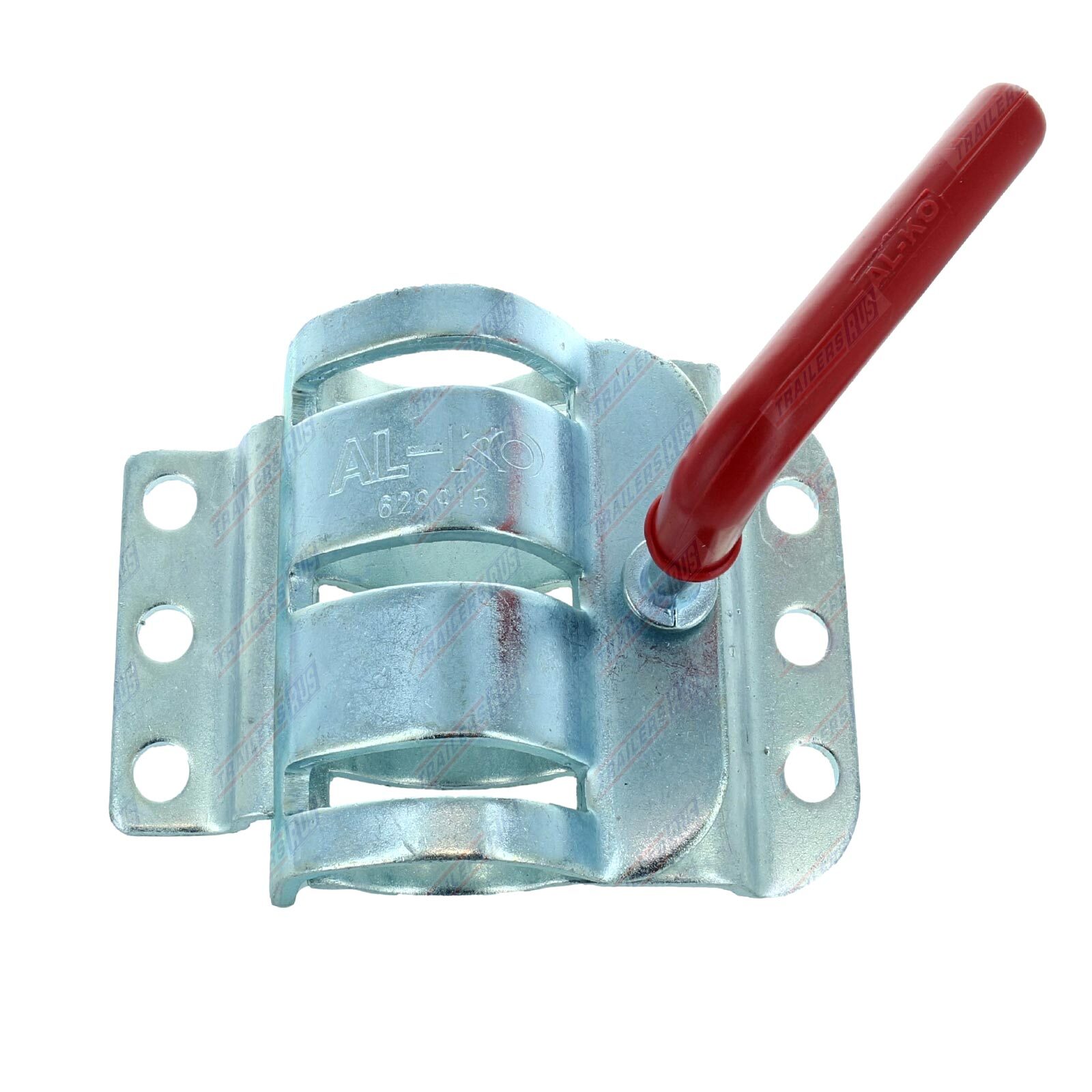

This Jockey Wheel Clamp can be either bolted or welded to your draw bar to attach your jockey wheel. It's just a matter of unwinding the clamp handle, swing back the bracket, put the jockey wheel in place and tighten up the clamp handle. A simple and effective way to add a jockey wheel to your trailer.

Features:

Suits 350kg Jockey Wheels

Zinc Plated Finish

Bolt On or Weld On clamp

Double Clamp

Suits 48mm O.D. tube clamp type Jockey Wheels

6 Hole

Bolt Holes on Bracket 13mm

Between Holes on Bracket - Centre to Centre 150mm

Top Hole to Middle Hole Measurement - Centre to Centre 32mm

Top Hole to Bottom Hole Measurement - Centre to Centre 63mm

SKU 629915
Brand ALKO
Shipping Weight 1.4100kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.180m
Shipping Cubic 0.002592000m3
Unit Of Measure ea
