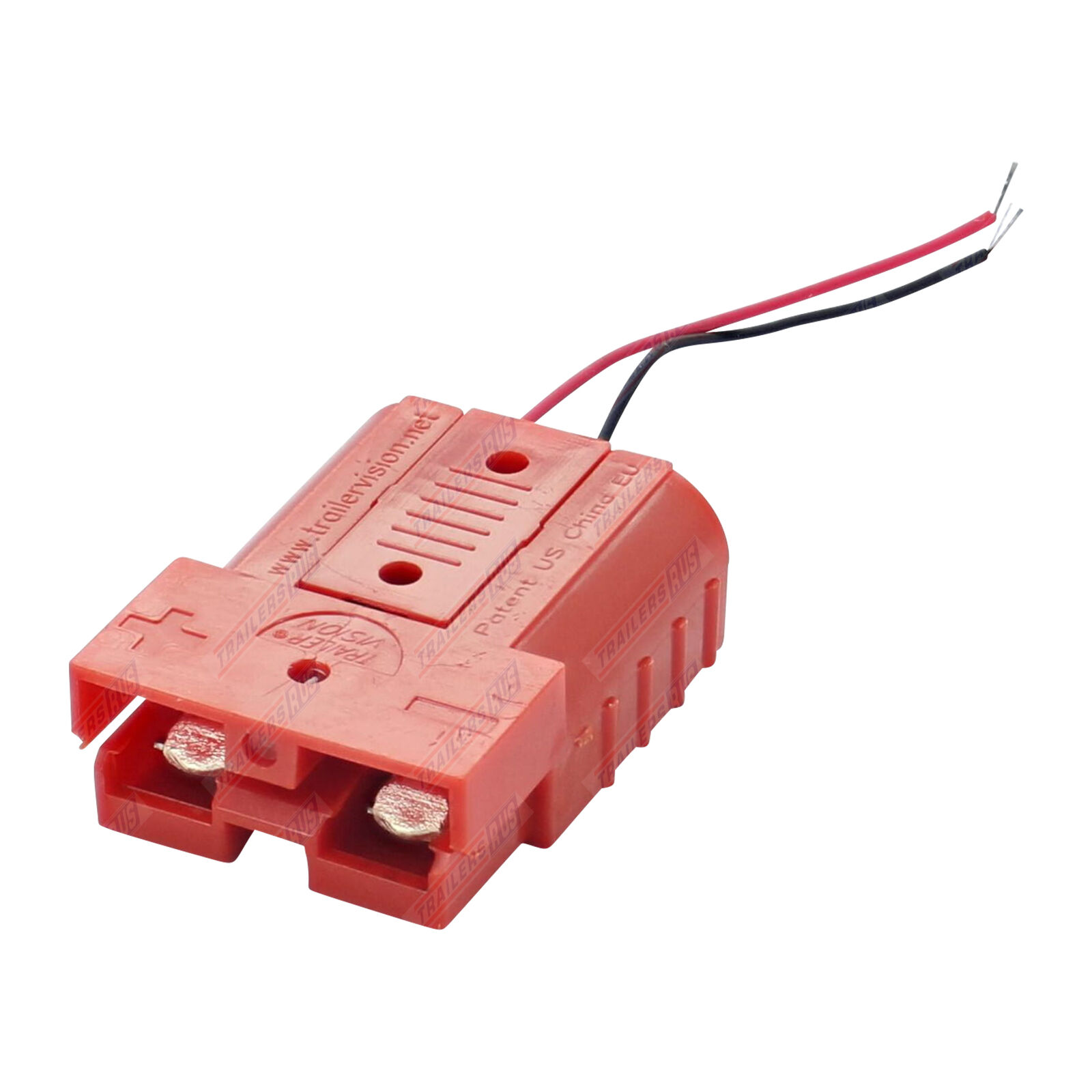

Trailer Vision have designed their Anderson Plugs for use in solar, dual battery, trailer or caravan, marine, 4wd or Industrial Applications. They feature a sturdy design that is interchangeable with other Trailer Vision Products like their range of Duo Connectors. Their 4 Screw mount system provides a safe and reliable connection and allows for retrofitting old connectors and is ideal for trade and DIY applications.

Specifications
50 Amps
No Soldering 4 Screw Terminals
600 Volts Max.
Contact Wire Size: up to 6AWG (13.3mm²)
Max Wire Dia: 11mm
Operating Temperature: -20C to 105C
Contact Retention Force: 22kg
Overall Plug Size: 48.2mm long x 36mm wide x 16mm high
Impact Resistant Polycarbonate Housing and Silver Plated Solid Copper Terminals
Offer Low Resistance for Enhanced Connectivity

SKU TV-USCHEU50R
Brand Trailer Vision
Shipping Weight 0.0360kg
Unit Of Measure ea
