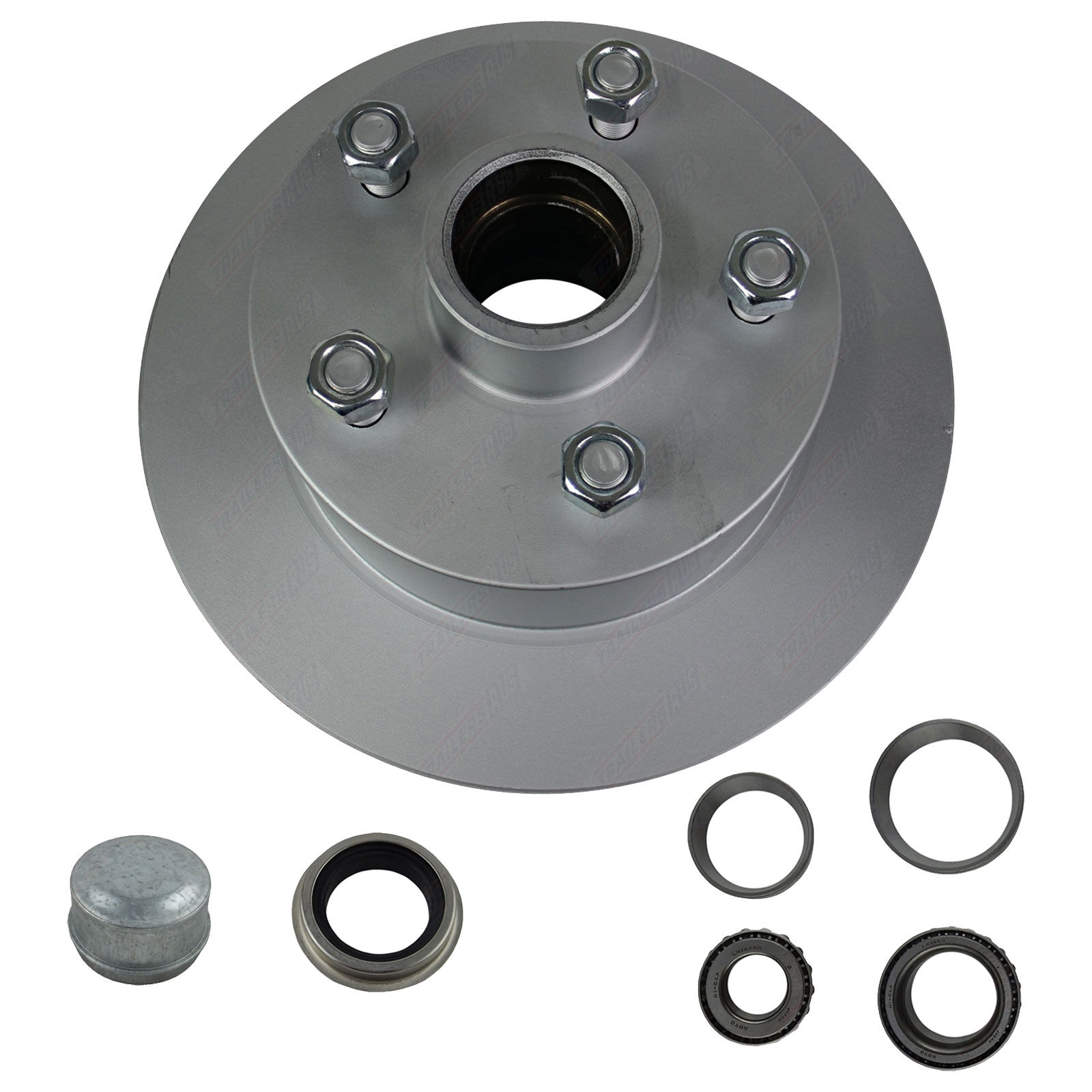

Mechanical Disc Brake Hubs are designed to be as part of a Mechanical Override trailer brake system. They are a legal requirement on trailers with a GTM between 750kg and 2000kg

Single Unit - 2 Per Axle

FORD TYPE SL BEARINGS - 45MM SQUARE OR ROUND AXLES

Please Note
These come with KOYO brand Japanese Bearings - KOYO are known for being high quality superior bearings manufactured to withstand the toughest conditions

Specifications
1/2" UNF Studs
5 Studs
PCD 114.3mm
68mm Stud to Stud
Fitted with Studs & Nuts
Galvanised
10" Disc

Includes
1 x Bearing LM12749
1 x Bearing L68149
1 x Outer Bearing Cup (already installed)
1 x Inner Bearing Cup (already installed)
1 x Rear Marine Seal 402922N
1 x Dust Cap

SKU TDIHFD10X12G-SL-KOYO
Brand TRU
Shipping Weight 8.2000kg
Shipping Width 0.270m
Shipping Height 0.130m
Shipping Length 0.270m
Shipping Cubic 0.009477000m3
Unit Of Measure ea
